Inmarsat-C: ricezione e decodifica SafetyNET



30/10/2018 - Come comunicato con largo anticipo da Inmarsat (www.inmarsat.com/support/i-3-to-i-4-services-migration/ ) il 30 ottobre è stata effettuata la migrazione dei servizi Inmarsat C, per la nostra area di ricezione ("Atlantic Ocean Region East"), dal satellite I-3 F2 al nuovo I-3 F5 ( I-3 to I-4 migration – Inmarsat C (Inm-C) service guide )

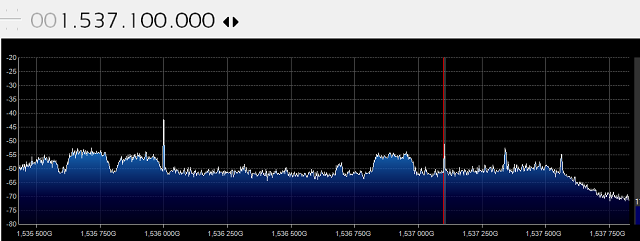

Il riposizionamento della mia piccola antenna patch da 15.5°W a 54°W di I-3 F5, con conseguente variazione sia dell'azimuth (249.1°-magn.: 247.1°) sia dell'elevazione (11.0°), non ha presentato particolari problemi grazie al piccolo supporto per smartphone che ho utilizzato. Il segnale ricevuto è sostanzialmente uguale a quello che ricevevo da I-3 F2:







02/09/2016 - Dopo aver illustrato, alla pagina www.iz1cqn.it/safetynet2.htm, le caratteristiche principali del servizio Safetynet Inmarsat, passiamo ora alla ricezione radio-dilettantistica del canale satellitare attraverso il quale vengono trasmessi i messaggi.

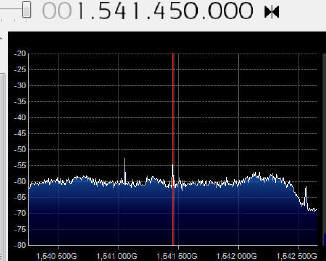

A Torino l'azimuth di 211.2° del satellite Inmarsat 3-F2 Atlantic Ocean Region AOR-E (uno dei quattro in orbita geostazionaria a circa 36.000 km dalla Terra), ha permesso la ricezione del flusso dati del canale NCS a 1541.450 MHz con l'antenna posizionata semplicemente davanti alle finestre del lato sud del mio QTH.



Nel dettaglio ho usato (oltre al pc): ricevitore sdr Airspy Mini, patch antenna RHCP, LNA-Low Noise Amplifier, SDRSharp, Virtual Audio Cable, per la ricezione e decodifica dei messaggi: EGC decoder e Inmarsat Stdc-decoder (versione registrata: sw che per stabilità e affidabilità nella decodifica preferisco rispetto al "windows like "EGC Decoder...).

Di seguito un breve video che illustra la ricezione e decodifica del canale NCS ed il link per ascoltare una piccola registrazione audio del segnale di AOR-E: soundcloud.com/iz1cqn/inmarsat-c.







Infine un estratto del log con alcuni MSI decodificati durante i primi test e salvati in automatico da Inmarsat Std-C decoder (file txt). A differenza delle stazioni Navtex, la copertura geografica assegnata ad ogni satellite permette la ricezioni di avvisi che riguardano anche aree marittime decisamente lontane... ma questa è la parte più interessante per chi, come me, ama  la navigazione... sulle onde radio e sul mare.



****

STRATOS CSAT 165.21.245.43 25-JUL-2016 08:23:32 757736TO : ALL SHIPS
FM : SINGAPORE PORT OPERATIONS CONTROL CENTRE

(AMENDED 250100Z JUL 2016)
REPORT OF 18 PERSONS MISSING FROM A CAPSIZED BOAT OFF BATU LAYAR, MALAYSIA, AT APPROX POSITION 01-27N 104-18E ON 23 JULY 2016 1500UTC. ALL PASSING VESSELS ARE REQUESTED TO KEEP A GOOD LOOKOUT, RENDER NECESSARY ASSISTANCE, AND REPORTING ANY SIGHTINGS TO THE NEAREST MRCC, OR MRCC SINGAPORE VIA TEL: +65 [cut], FAX: +65 [cut], or E-MAIL: [cut].GOV.SG<mailto:[cut]MPA.GOV.SG>.


****

NL BURUM LES 23-JUL-2016 14:31:00 751346

NAVAREA V
DISTRESS ALERT SAR 0096/16
NORTH OF SAO LUIS
CHART 21020 (INT 2003)
MAN OVERBOARD, LAST POSITION IN 01-40.80S 043-45.80W AT 08 JUL 16
VESSELS IN VICINITY REQUESTED TO KEEP A SHARP, LOOKOUT, ASSIST AND REPORTS
ST

****

NAVAREA TWO 201/16

MARITIME SECURITY IN WEST AFRICA - GULF OF GUINEA
RECENT INFORMATION RECEIVED BY MDAT-GOG INDICATES THAT AN
UNAUTHORISED OR FRAUDULENT EMAIL MESSAGE CLAIMING TO BE REGIONAL
COASTGUARD IS BEING SENT FROM COASTGUARD.GOG@GMAIL.COM TO VESSELS
TRADING IN THE GOG IOT OBTAIN INFORMATIONS.
VESSELS ARE ADVISED TO BE ON ALERT AND TO VERIFY SUCH MESSAGES.
FOR ANY QUERIES REGARDING THIS ADVISORY NOTICE CONTACT MDAT-GOG FOR
FURTHER INFORMATION.
TEL: +33 [cut]
EMAIL : WATCHKEEPERS@[cut].ORG

****

NL BURUM LES 23-JUL-2016 14:50:20 198371

NAVAREA V
DISTRESS ALERT SAR 0098/16
NEARBY FLORIANOPOLIS
CHART 1906
SAILBOAT TAIPAN MISSING 3 CREWMEN ON BOARD
LAST POSITION IN 27-50.58S 048-34.01W AT 09 JUL 16
VESSELS IN VICINITY REQUESTED TO KEEP A SHARP, LOOKOUT, ASSIST AND REPORTS

****
NL BURUM LES 23-JUL-2016 16:27:50 267161

NAVAREA V
COASTAL WARNING S 0545/16
SOUTH OF ILHA DE ALCATRAZES
CHART 23200 (INT 2125)
SHIPWRECK DONA ANA L IN 25-01.00S 045-47.00W
CANCEL THIS WARNING 021415 UTC JAN 17.
ST

****

NAVAREA TWO 213/16
NAVAREA TWO WARNINGS IN FORCE AT 18 JUL 16

2016: 172-193-194-198-199-201-210-211-212-213

1. ONLY THOSE LESS THAN 42 DAYS OLD ARE DAILY BROADCASTED ON SAFETY NET AT 04H30 AND 16H30 UTC
2. ALL NAVAREA II WARNINGS IN FORCE ARE AVAILABLE ON DIFFUSION.SHOM.FR
3. NAVAREA II ARE ALSO PRINTED IN WEEKLY EDITIONS OF NOTICES TO MARINERS (SECTION 1.2).

****

NAVAREA IV 552/16(24,25).
CARIBBEAN SEA.
NETHERLANDS ANTILLES.
NAVTEX.
NAVTEX STATION CURACAO 12-10N 068-52W INOPERATIVE.

****

NAVAREA IV 534/16(11,27,28).
GULF OF MEXICO.
BAY OF CAMPECHE.
YUCATAN CHANNEL.
1. SEISMIC SURVEY IN PROGRESS UNTIL FURTHER
NOTICE BY M/V NORTHERN EXPLORER TOWING
12000 METER LONG CABLE IN AREA BOUND BY
22-43N 094-11W, 20-55N 092-15W,
23-06N 088-33W, 21-21N 086-13W,
21-50N 085-44W, 25-34N 086-51W,
25-57N 090-00W.
EIGHT MILE BERTH REQUESTED.
2. CANCEL NAVAREA IV 429/16.

****

NAVAREA IV 486/16(24).
WESTERN NORTH ATLANTIC.
TRINIDAD AND TOBAGO.
1. SURVEY OPERATIONS 23 JUN THRU 23 JUL
BY M/V DELTA SKIPPER IN AREA BOUND BY
10-22.09N 060-36.46W, 10-03.58N 060-22.77W,
09-58.76N 060-17.98W, 10-05.71N 060-08.70W,
10-23.62N 060-29.89W, 10-24.08N 060-28.92W,
10-25.62N 060-26.72W.
WIDE BERTH REQUESTED.
2. CANCEL THIS MSG 24 JUL 16.

****
NL BURUM LES 30-JUL-2016 09:23:27 122059

SECURITE
170713 UTC MAR 16
NAVAREA VII/074
1. SOUTH ATLANTIC OCEAN - NE SECTOR - PORT OF WALVIS BAY
2. CHART SAN 1001 (INT 2611)
3. CONCRETE BLOCKS USED DURING DREDGING OPERATIONS
PLACED IN FOLLOWING POSITIONS
4.A. 22 - 56.81 S 014 - 29.85 E
B. 22 - 56.79 S 014 - 29.86 E
C. 22 - 56.79 S 014 - 29.85 E
5. NAVIGATE WITH CAUTION
6. UNTIL FURTHER NOTICE


NNNN

****

SECURITE
WEATHER AND SEA BULLETIN REFERENCE ANALYSIS 240000 NR 411/2016
METAREA V BRAZILIAN NAVY MARINE METEOROLOGICAL SERVICE
NAVY HYDROGRAPHY CENTRE
ISSUED AT 0730 GMT SUN 24/07/2016


WEATHER AND SEA BULLETIN ISSUED AT 0000 UTC - 24/JUL/2016
DATE AND TIME b UTC
PRESSURE - HPA
WINDS - BEAUFORT SCALE
WAVES HEIGHT b METERS
PART ONE b WARNINGS
WARNING NR 932/2016
HIGH SURF WARNING
ISSUED AT 1330 - SAT- 23/JUL/2016
HIGH SURF BETWEEN TOUROS (RN) AND ARACAJU (SE) STARTING AT
240000. WAVES FROM SE/E 2.5.
VALID UNTIL 260000.
PART TWO - WEATHER ANALYSIS AT 240000
LOW 1002 44S049W. HIGH 1026 28S031W. TROUGH 35S053W, 38S049W
AND 41S046W. TROUGH 33S030W, 37S028W AND 39S027W. C-FRONT 44S049W,
41S054W AND 38S060W MOVING AT 10/15 KNOTS TO E/NE. Q-STNR 17S037W,
18S032W AND 20S028W. C-FRONT 36S012W, 29S016W, 25S021W, 22S025W AND
28S028W MOVING AT 05/10 KNOTS TO E/SE. TROPICAL WAVE 06N040W,
11N041W AND 19N039W MOVING AT 15 KNOTS TO W.
INTERTROPICAL CONVERGENCE ZONE (ITCZ) 10N020W, 10N030W, 08N040W
AND 07N050W.
PART THREE - WEATHER FCST VALID FM 241200 TO 251200
AREA ALFA (FM ARROIO CHUI ATE CABO DE SANTA MARTA)
ISOL SHWRS E OF AREA. WIND SW/SE 2/3 BACK SE/NE 3/4. WAVES FM
NE/NW 1.5/2.5 BECMG SW/SE 1.0/2.0. VIS GOOD DECR TO MOD DURING
SHWRS.
AREA BRAVO (FM CABO DE SANTA MARTA ATE CABO FRIO - OCEANICA)
ISOL SHWRS S OF 28S. WIND NE/NW 4/5 OCNL 6 WITH GUSTS BACK SW/SE
2/3. WAVES FM E/N 1.5/2.5 BECMG 1.0/1.5. VIS GOOD DECR TO MOD
DURING SHWRS.
AREA CHARLIE (FM CABO DE SANTA MARTA ATE CABO FRIO - SHORE)
WIND NE/NW 4/5 WITH GUSTS N OF AREA AND 3/4 ELSE BECMG VARIABLE
WIND 2/3. WAVES FM SE/NE 1.0/1.5 BECMG 0.5/1.0. VIS GOOD.
AREA DELTA (FM CABO FRIO ATE CARAVELAS)

[CUT]


Fine seconda parte
